IP Ratings on Motors: What They Really Mean (and How to Choose the Right One)

If you work around pumps and rotating equipment, you’ve seen IP55, IP66, or IP68 on a motor nameplate. Those two characters and two digits look simple—but they drive reliability in dust, rain, washdown, sumps, and slurry-laden sites. Here’s a practical, no‑nonsense guide to IP ratings for motors: what they cover, what they don’t, and how to pick the right one for your environment.

Quick refresher: What “IP” means

IP = Ingress Protection, defined by IEC 60529. It’s two digits:

First digit (0–6): solids
0 none, 1 >50 mm, 2 >12.5 mm, 3 >2.5 mm, 4 >1 mm, 5 dust-protected, 6 dust‑tight
Second digit (0–9/9K): water
0 none, 1 dripping, 2 dripping (tilted), 3 spraying, 4 splashing, 5 jets, 6 powerful jets, 7 immersion (temporary), 8 continuous immersion (conditions defined by the manufacturer), 9/9K high‑pressure, high‑temp jets

Example: IP66 = dust‑tight + protected against powerful water jets.

IP vs. motor enclosure terms (TEFC/ODP)

ODP (Open Drip Proof) ≈ IP23 typical. Good indoors, clean/dry. Not for washdown or dust.
TEFC (Totally Enclosed Fan Cooled) ≈ IP55 standard, often available as IP56/IP65/IP66 for harsher service.
TENV/TEAO variants exist; check the actual IP on the nameplate—don’t assume.

What IP ratings do and don’t cover

They DO test:

Dust ingress (for IP5X/IP6X)
Water from specific directions/pressures (for the second digit)
Immersion depth/time only when IPX7/IPX8 is specified (and IPX8 must include a stated depth/time)

They DON’T guarantee:

Corrosion resistance (chemicals, salt, caustics)
UV/weather ageing
Mechanical abuse (stones, impacts)
Steam cleaning into seals (unless proven for IP69/IP69K)
Hazardous area suitability (that’s IECEx/ATEX, separate from IP)

Common motor IP ratings you’ll run into

IP55: The “industrial default” for TEFC motors. Dust‑protected + water jets. Fine for outdoor areas with rain, occasional hose‑down, and general dust.
IP56: Like IP55 but better for stronger jets/splash zones (marine decks, aggressive hose‑downs).
IP65/IP66: Dust‑tight with jets (IP65) or powerful jets (IP66). Great for quarry, cement, washdown, or where fines and slurry mist are a thing.
IP67: Temporary immersion. Rare on standard frames; think accidental flooding.
IP68: Continuous immersion. You’ll see this on submersible motors; the maker must state depth/time (e.g., 20 m continuous).
IP69 / IP69K: High‑pressure, high‑temp washdown. More typical on food & beverage “washdown‑duty” stainless motors and sensors. Not all fan shrouds and drain points survive true IP69 cleaning practices—ask for test evidence if you plan to regularly hit it with a hot pressure lance.

Choosing the right IP for motors on pumps

Think environment first, then cleaning method, then cost/heat dissipation.

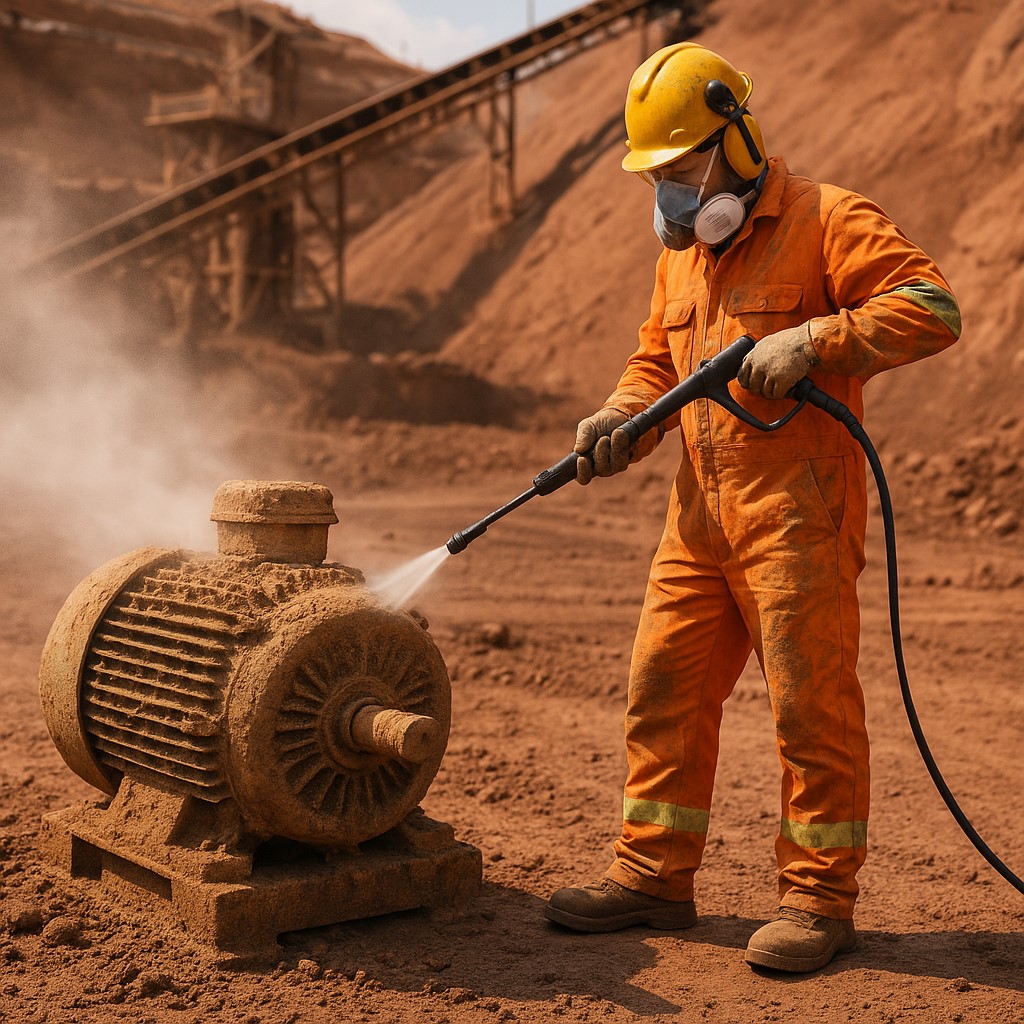

1) Dusty, abrasive sites (quarry, cement, mineral sands)

Recommended: IP66 on TEFC.
Why: Dust‑tight keeps fines out of bearings and windings; powerful jets rating tolerates cleaning without forcing water past seals.

2) Outdoor weather, no direct washdown (general industrial yard)

Recommended: IP55 minimum; add rain hat on vertical motors.
Add‑ons: Drip covers, correctly oriented drain plugs, quality cable glands.

3) Aggressive washdown (food & beverage)

Recommended: IP66 at minimum; consider IP69/IP69K motors proven for caustic/steam cleaning.
Add‑ons: Stainless housings, sealed fan shrouds (or TENV), FDA‑grade seal materials, properly rated cable glands and conduit to match the IP.

4) Sumps, boreholes, or submerged duty

Recommended: IP68, and confirm the rated depth/duration with the supplier.
Watchouts: Seal system (double mechanical seal? oil‑filled?), cable entry design, and moisture/temperature sensors.

5) Coastal/marine splash zones

Recommended: IP66 plus coating/corrosion package.
IP won’t stop salt attack—specify paint systems, stainless hardware, and marine‑grade glands.

Don’t let the IP fall apart at the weak links

An IP66 motor can be “downgraded” by bad accessories or installation:

Cable glands/cord grips: Must be IP‑rated to match and installed on circular, clean entries with the right compression.
Terminal box orientation: Side/top entries that collect water are a classic failure point.
Drain/breather plugs: Many motors ship with removable drains. Wrong orientation = water traps.
Conduit threads: Use thread sealant/appropriate adapters; mixing NPT/BSP poorly creates leak paths.
Nameplate rivets and fan covers: High‑pressure cleaning can drive water through any unsealed hole.

IP and heat: why “higher” isn’t always better

Tighter enclosures can mean less cooling margin. A motor built as IP66 may run hotter than an IP55 equivalent. When you step up the IP rating:

Check the service factor and ambient temperature limits.
With VFDs, ensure adequate cooling at low speeds (fan may be less effective); consider separately powered/EC fans or TENV with derate.

IP vs. other marks you’ll see on a nameplate

Insulation Class (B/F/H): Thermal endurance of winding insulation—not ingress.
Temperature Rise: How hot the windings run at rated load—not ingress.
Cooling method (IC codes, e.g., IC411 = TEFC): Air paths/fans—not ingress.
IECEx/ATEX: Explosion protection. You still need a suitable IP, but Ex compliance is separate.

Typical pump applications (cheat sheet)

Booster/set indoors (clean plant): TEFC IP55
Outdoor transfer pumps, mining conveyors: TEFC IP66, rain hat if vertical
CIP/foam/pressure‑wash areas: Washdown‑duty IP66–IP69, stainless options
Submersible sump/dewatering: IP68 (verify depth/duration, seal system)
Chemical fumes/splash: IP66 + chemical‑resistant coatings and glands (IP alone is not chemical resistance)

IP Code	First Digit – Solids Protection	Second Digit – Water Protection
0	No protection	No protection
1	Protected against objects >50 mm	Dripping water (vertical)
2	Protected against objects >12.5 mm	Dripping water (tilted up to 15°)
3	Protected against objects >2.5 mm	Spraying water
4	Protected against objects >1 mm	Splashing water
5	Dust protected (limited ingress)	Water jets
6	Dust tight (no ingress)	Powerful water jets
7	–	Immersion up to 1 m for 30 min
8	–	Continuous immersion (depth/time as specified by manufacturer)
9 / 9K	–	High-pressure, high-temperature water jets

Maintenance moves that save motors

Grease discipline: Follow the grease type and interval—water‑resistant greases where appropriate.
Space heaters: Fit and wire them for humid or stop/start duty to avoid condensation.
Post‑wash checks: Let the motor cool, avoid direct jetting at seals/breathers, verify drains are clear and oriented correctly.
IR/insulation testing after floods or heavy washdowns before re‑energising.

Buying checklist (copy this into your PO)

Required IP rating (e.g., IP66) and terminal box IP to match
Mounting & orientation (horizontal/vertical; rain hat if vertical outdoor)
Glands: Size/type, IP match, material (brass/stainless/poly)
Coating system: Environment class (marine, chemical, UV)
Drain/breather configuration and location
VFD use: Cooling at low speed, bearing protection (VBX/insulated/shaft grounding)
Ambient & altitude limits; service factor
For IP68: Depth and duration rating in writing, plus seal arrangement

An IP rating is not a luxury spec; it’s a reliability lever. Match IP to the actual environment and cleaning practice, and then protect that rating with the right glands, drains, and mounting. Do that, and you’ll stop water and dust at the door—before they become bearing damage, winding faults, and unplanned downtime.
