Leak-Free Applications, Limitations & Key Insights

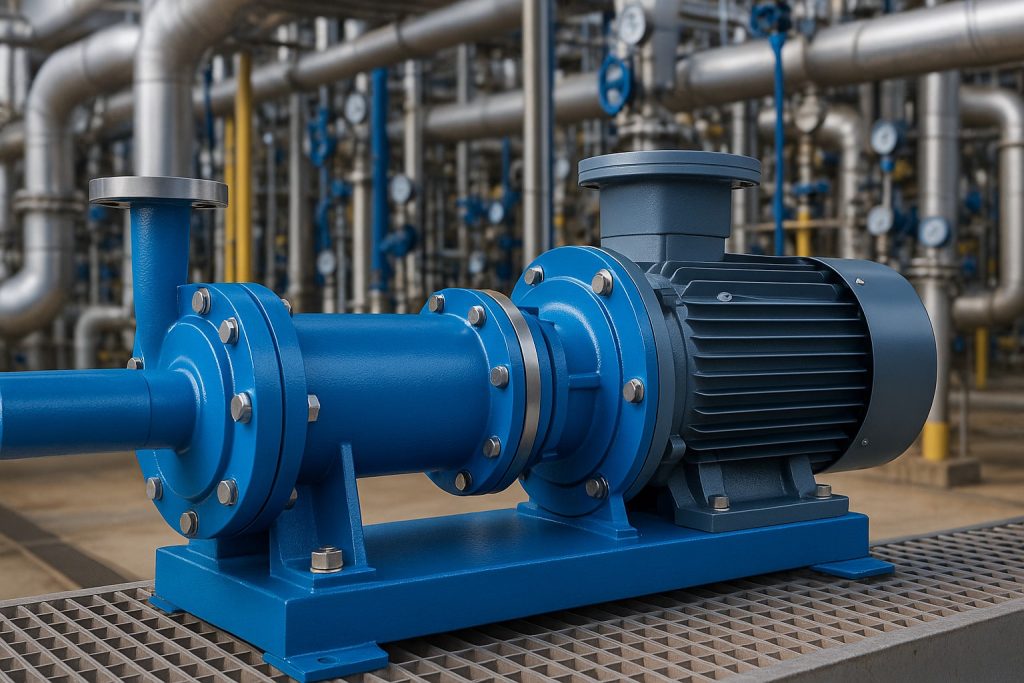

What Are Magnetic Drive Pumps?
Magnetic drive pumps (or mag-drive pumps) are a type of centrifugal pump that eliminates the need for a mechanical seal. Instead of a traditional shaft connection between the motor and impeller, they use powerful magnets to transfer torque through a containment shell, creating a completely sealed pump chamber.
This leak-free design makes them ideal for handling hazardous, corrosive, or expensive fluids where even a small leak is unacceptable.
How Magnetic Drive Pumps Work
- Outer magnet is attached to the motor shaft.
- Inner magnet is connected to the impeller inside the pump casing.
- As the motor spins, the outer magnet drives the inner magnet, which rotates the impeller.
- All this happens without physical contact—no shaft penetration of the pump casing.
- The result: no mechanical seal, no risk of external leakage.
Applications of Magnetic Drive Pumps
Mag-drive pumps are most commonly used in situations where safety, cleanliness, or chemical resistance are critical:
- Chemical processing plants (acids, solvents, corrosive fluids)
- Water treatment (handling caustic or oxidizing agents)
- Pharmaceutical and food manufacturing
- Battery production and electronics
- Laboratories and dosing systems
- Mining (handling aggressive reagents like cyanide or ferric chloride)
Advantages of Magnetic Drive Pumps
- Seal-less, leak-free operation – No mechanical seal to wear or fail
- Low maintenance – Fewer moving parts, no seal replacement
- Corrosion-resistant materials – Often built with ETFE, PVDF, or PP
- Safe handling of dangerous or toxic liquids
- Reduced downtime – Ideal for continuous-duty systems
Limitations of Magnetic Drive Pumps
- Cannot handle solids – Impellers and internal clearances are not designed for abrasive or particulate-laden fluids (not applicable to all brands)
- Dry run risk – Mag-drive pumps rely on liquid for cooling and lubrication; dry running can damage internal components
- Torque slip – Sudden changes in load may cause the magnets to decouple, stopping the pump
- Lower pressure capability compared to mechanically sealed alternatives in some cases
Summary: Is a Magnetic Drive Pump Right for You?
Choose a magnetic drive pump when:
- Leak-free operation is critical
- You’re pumping corrosive, hazardous, or expensive liquids
- Clean, continuous-duty operation is required
Avoid mag-drive pumps for:
- Slurries or fluids with suspended solids
- Applications with frequent dry-running or cavitation risk
