In many fluid handling systems, a single pump just isn’t enough. Whether it’s because of high head requirements, fluctuating flow demands, or system redundancy, engineers often turn to installing pumps in series or parallel. While both approaches involve using more than one pump, the way they interact with the system — and the reasons for choosing one over the other — are very different.
Let’s break it down.
Pumps in Series
When pumps are installed in series, the discharge of the first pump feeds directly into the suction of the second pump.
- What happens: The head (pressure) is additive, while the flow rate stays the same.
- Think of it like: Batteries in a torch. Each battery adds voltage, giving more “push,” but the current (flow) remains the same.
When to use pumps in series:
- High head applications: If the system requires pressure beyond what one pump can achieve, two or more in series can reach the target head.
- Long pipelines or elevation lifts: Mines, municipal water supply, or high-rise buildings often rely on series configurations to overcome friction losses and elevation.
- System flexibility: You can stage pumps on or off to match different operating points without overloading a single pump.
Example: In slurry pipelines stretching several kilometers, pumps in series keep the solids moving without settling by boosting pressure along the line.
Pumps in Parallel

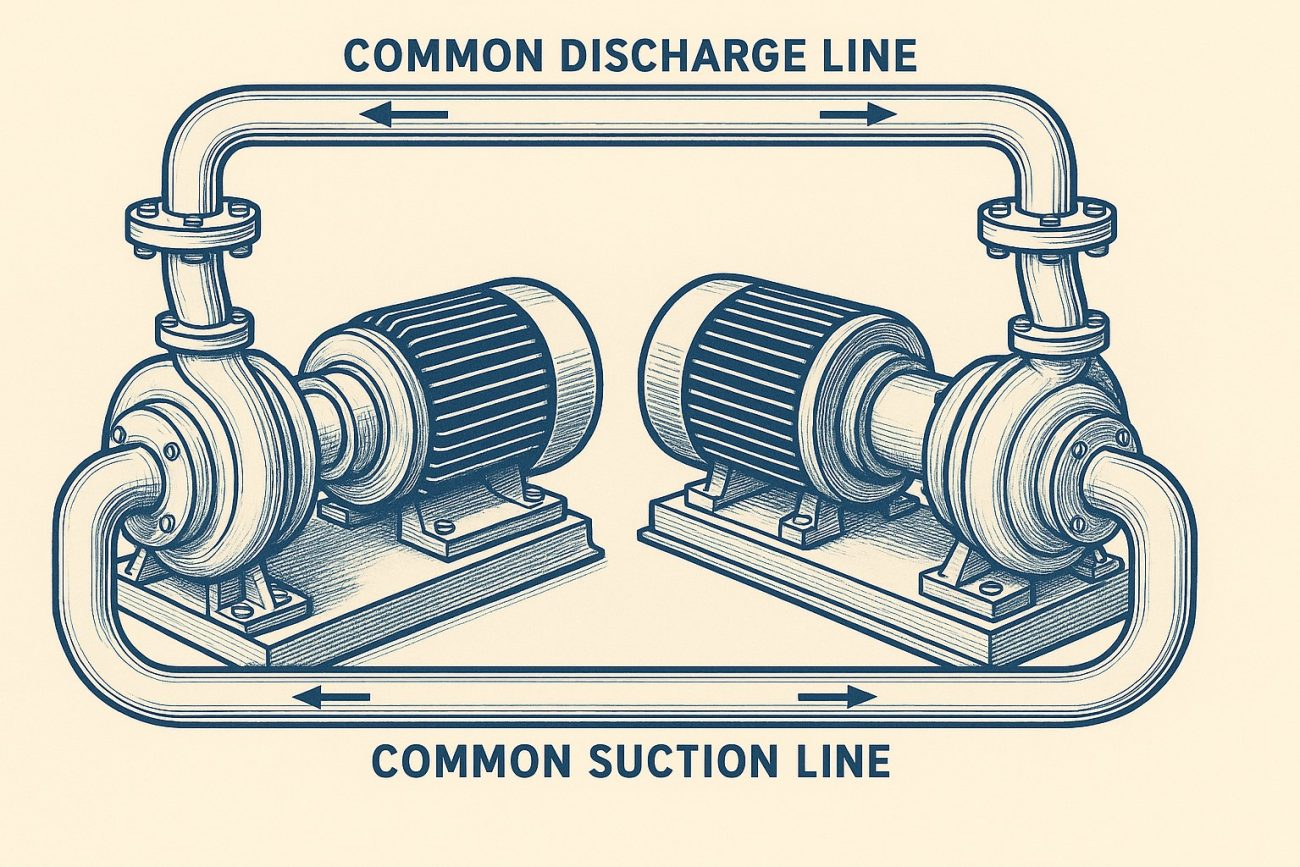

When pumps are installed in parallel, they sit side by side with their discharges joined at a common header.
- What happens: The flow is additive, while the head (pressure) remains the same.
- Think of it like: Multiple hoses filling a swimming pool at once. Each adds volume, but the pressure at the nozzle doesn’t increase.
When to use pumps in parallel:
- High flow applications: If the system demands more capacity than one pump can deliver, parallel pumps share the load.
- Variable demand: You can run one pump during low flow periods and bring others online as demand increases — ideal for water treatment plants, irrigation systems, or HVAC.
- Redundancy: One pump can act as standby, keeping the process running if another fails.
Example: In municipal water distribution, parallel pumps allow operators to match changing daily flow demand while maintaining system pressure.
Series vs Parallel at a Glance
| Configuration | Adds Head | Adds Flow | Typical Use |
|---|---|---|---|
| Series | Yes | No | Long pipelines, high-rise lifts, high head |
| Parallel | No | Yes | High flow demand, variable demand, redundancy |
Choosing the Right Setup
- Go Series if: Your main challenge is overcoming pressure — think steep elevation, long distance, or high system resistance.
- Go Parallel if: You need flexibility in flow capacity, efficiency at different operating points, or system reliability.
In some complex systems, engineers even combine both strategies — banks of pumps in parallel sets, arranged in series — to balance both head and flow.
Final Word
Installing multiple pumps isn’t just about “more is better.” It’s about matching your pumping configuration to the system’s hydraulic requirements. Series pumping boosts pressure; parallel pumping boosts flow. Get this choice right, and you’ll achieve better reliability, energy efficiency, and long-term cost savings.
